LM-845 PREMIUM

VACUUM TUBE INTEGRATED AMPLIFIER

SINGLE ENDED 845 – 2X30W



The LM-845 Premium is the result of many years of research on the 845 triodes Single-ended design. Thanks to its exceptional design and manufacturing quality, it is fast becoming the absolute reference in the high-end amplifiers world.

With a power output of 2x30W, it can be used with most of the existing reference speakers.

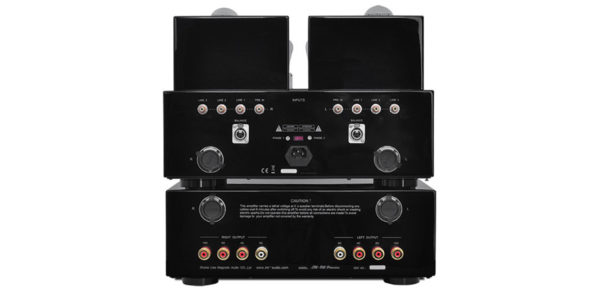

The LM-845 Premium is a combination of two units: One is the amplifier unit and the other is an output unit.
The LM-845 Premium uses Shuguang 300B tubes in drivers, the 310A for amplifier and Shuguang 12AX7 in pre-amplification.

There are two user bias controls for 300B and 845 have been used for bias adjustment and two meters have been added to the front plate to allow you to monitor bias with ease. Negative feedback switch is on the front plate that you can choose between two levels of NFB to enjoy the different sound outputs.

The LM-845 Premium uses 8 transformers (power supply, filtering, coupling and output)!

Highlights
– Single-ended design
– Class A amplifier
– Point-to-point wiring
– High-quality components

TUBES
Input stage: 2x 12AX7
Drivers: 2x 300B, 2x 310A
Power stage: 2x 845 « single-ended »

Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
soft start and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two Premium versions EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.

Metal and removable tube guard cage
Infrared Remote control

Tubes basics               Common replacements
12AX7                           12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
300B                              300A, 4300B
845                                845 A/B/C
310A                              Soviet Union/om12C, WE310A



Specifications
Class A amplifier – 2x30W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Pondéré A)
Frequency Response  (-1.5dB): 10 – 50.000 Hz
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω

Connectors
3x Line inputs RCA (pair)
1x Pré-in input
2x Screw terminals compatible with banana plugs

Dimensions:
Amplifier unit: W 435 x H 460 x D 456 mm
Output unit: W 435 x H 160 x D 456 mm

Total dimensions: W 435 x H 620 x D 456 mm
Total Weight: 62 Kg

Finish: Black
