Line Magnetic Integrated LM-805IA

Line Magnetic Integrated LM-805IA

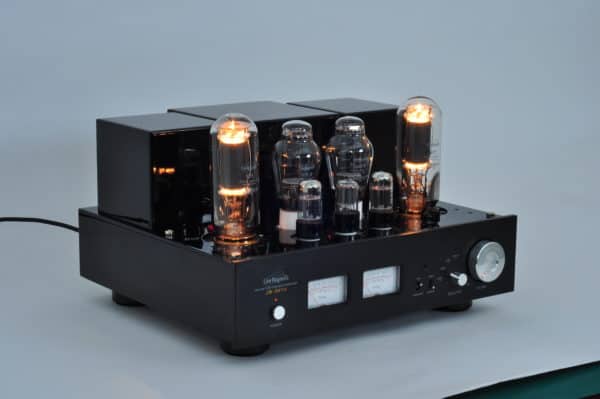

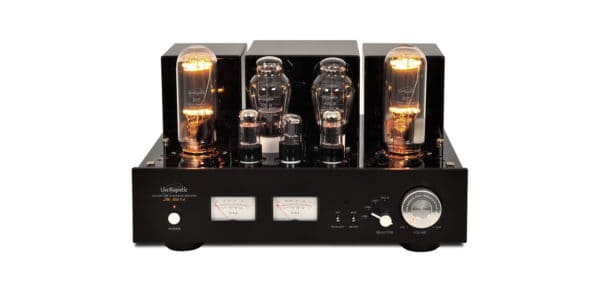

The Line Magnetic 805iA uses single-ended triode 805 tubes and operate in pure Class A. It delivers 2x48W power. It has 3 unbalanced line inputs, 1 bypass input and 4, 8, 16Ω output groups. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.

The use of high-quality components (Mundorf N-Cap capacitors, ALPS potentiometer) wired in the air, for the most part, is the guarantee of exemplary reliability. Its power and current capacity allow it to manage a very wide range of speakers. The use of the legendary triode 805 offers to listen to an unusual musicality.


HIGHLIGHTS
– Single-ended design
– Class A amplifier
– Point-to-point wiring
– High-quality components

TUBES
Input stage: 1x 6SL7 2x 6SN7
Drivers: 2x 300B
Power stage: 2x 805 « single-ended » Pure Class A

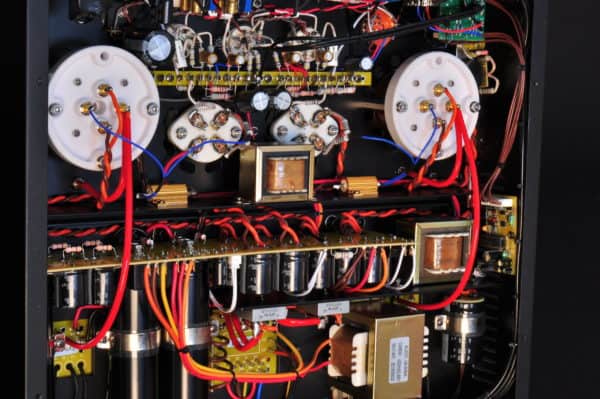

Hand-made construction with the finest point-to-point wiring

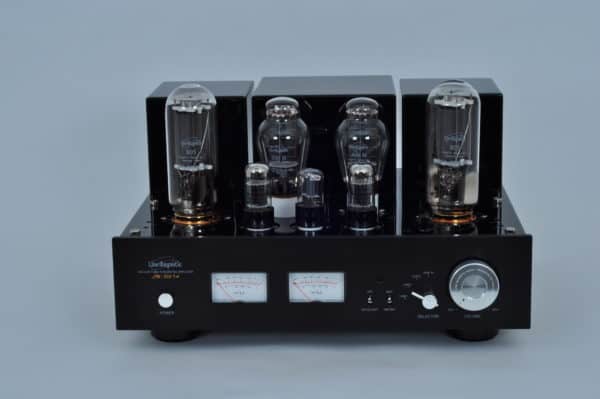

Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 3 line inputs, 1 by-pass input Load impedance: 4/8/16Ω SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.

Metal and removable tube guard cage
Infrared Remote control



Tubes Basics                Common Replacements
300B                             600B, 300A, 4300B
6SL7                             6N9P, 6H9C, CV1985, ECC35
6SN7                            6H8C, 6N8P, 5692, CV181, ECC33
805                                805, FU-5



Specifications
Class A amplifier – 2x48W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Fréquence Responsive: (-1.5dB) : 10 – 50.000 Hz
Sensitivity: 300 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω

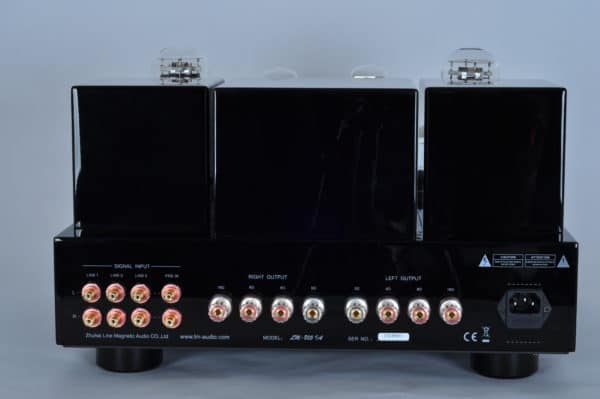

Connectors
3x Line inputs RCA (pair)
1x Pre-in input
2x Screw terminals compatible with banana plugs

Dimensions: W 430 x H 275 x D 415 mm
Weight: 42 Kg
