Line Magnetic LM-216IA

Line Magnetic LM-216IA

Integrated Tube Amplifier

Push Pull KT88 – 2X38W

The Line Magnetic integrated amplifier LM-216IA is a push-pull amplifier with 4x KT88 tubes in Class AB amplification and delivers 2x22W in triode mode and 2x38W in ultra-linear mode. It has 4 balanced line inputs and 4/8Ω output groups. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.

The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially designed for power supply. The LM-216iA delivers dynamic, rich and natural sound.

Highlights
– Triode/ultra-linear modes
– Point-to-point wiring
– High quality components

TUBES
Input stage: 2x 12AX7 et 2x 12BH7
Power stage: 4x KT88

Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 4 line inputs
Load impedance: 4/8Ω
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied

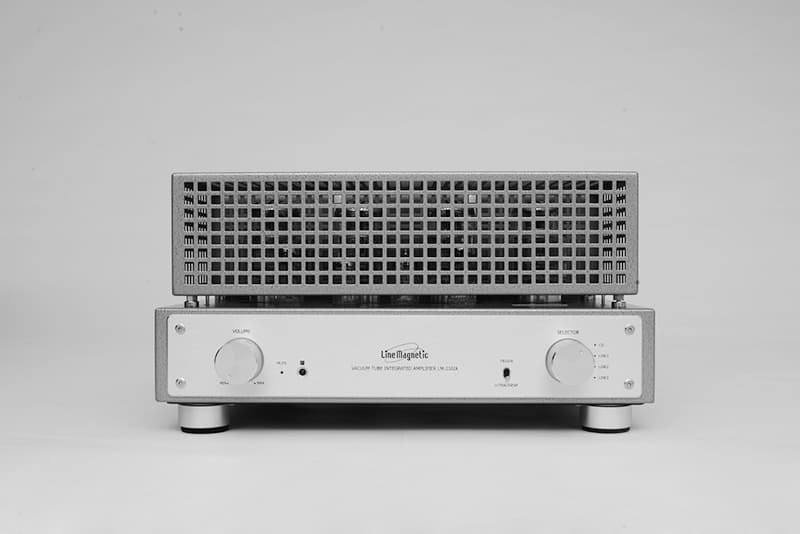

Metal and removable tube guard cage
Infrared Remote control



Specifications
Class AB amplifier
2x22W RMS Triode and 2x38W RMS Ultra-linear
Tubes: 2x 12AX7, 2x 12BH7, 4x KT88
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency response: 10 à 50.000 Hz (-1.5 dB)
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8Ω

Connectors
4x Line Inputs RCA (pair)
2x Screw terminals compatible with banana plugs

Dimensions: W 376 x H 192 x D 345 mm
Weight: 19.6 Kg
