Line Magnetic LM-24CD – CD PLAYER & DAC

Line Magnetic LM-24CD – CD PLAYER & DAC

LM-24CD – CD PLAYER –

DAC ESS9016 – POWER STAGE 2X 6ZK8



The LM-24CD has optical and coaxial digital outputs, XLR and BNC analog outputs as well as an analog stereo RCA and XLR outputs as well as an analog stereo RCA and XLR output. The mechanical CD is original SONY KSM-213C.

The DAC is based on an ESS9016 chip and the output stages use two 6ZK8.

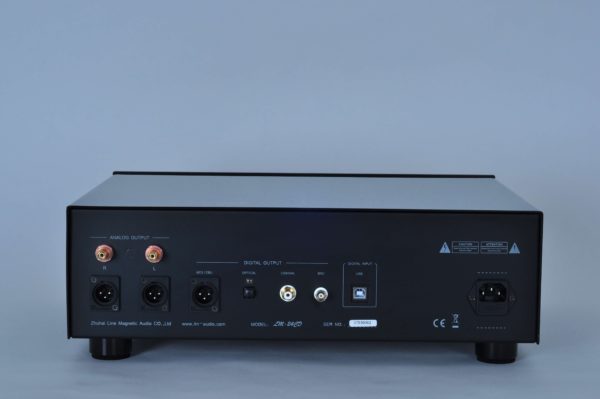

The USB port on the rear of the LM-24CD allows you to listen to music from your computer. The USB port XMOS operate asynchronously with files 32bits/192kHz.


Highlights
Power stage
DAC ESS9016
Many analog and digital outputs
High-quality components

Specifications
Frequency response: 20 – 20.000 Hz (+/-3dB)
Signal/Noise ratio: 110dB
THD: 0.0025%
Dynamic: 110B
Output Level RCA: 2 Vrms
Output Level XLR: 3 Vrms
Reading time: 5 secondes

Connectors
1x Analog output RCA
1x Analog output XLR
1x Digital output AES/EBU
1x Digital output coaxial
1x Digital output Optique
1x Digital output BNC
1x Input USB 2.0 Type-B

Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Manual


Generality

Dimensions (L x H x P): 330 x 105 x 325 mm
Weight: 10 Kg

Finish: Black
