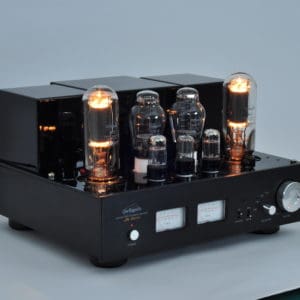

The Line Magnetic 805iA uses single-ended triode 805 tubes and operate in pure Class A. It delivers 2x48W power. It has 3 unbalanced line inputs, 1 bypass input and 4, 8, 16Ω output groups. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.

The use of high-quality components (Mundorf N-Cap capacitors, ALPS potentiometer) wired in the air, for the most part, is the guarantee of exemplary reliability. Its power and current capacity allow it to manage a very wide range of speakers. The use of the legendary triode 805 offers to listen to an unusual musicality.

HIGHLIGHTS
– Single-ended design
– Class A amplifier
– Point-to-point wiring
– High-quality components

TUBES
Input stage: 1x 6SL7 2x 6SN7
Drivers: 2x 300B
Power stage: 2x 805 « single-ended » Pure Class A

Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 3 line inputs, 1 by-pass input Load impedance: 4/8/16Ω SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.

Metal and removable tube guard cage
Infrared Remote control

Tubes Basics                Common Replacements
300B                             600B, 300A, 4300B
6SL7                             6N9P, 6H9C, CV1985, ECC35
6SN7                            6H8C, 6N8P, 5692, CV181, ECC33
805                                805, FU-5

Specifications
Class A amplifier – 2x48W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Fréquence Responsive: (-1.5dB) : 10 – 50.000 Hz
Sensitivity: 300 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω

Connectors
3x Line inputs RCA (pair)
1x Pre-in input
2x Screw terminals compatible with banana plugs

Dimensions: W 430 x H 275 x D 415 mm
Weight: 42 Kg

INTEGRATED TUBE AMPLIFIER
PUSH PULL EL34 – 2X32W

The Line Magnetic integrated amplifier LM-211IA is a push pull amplifier with 4x EL34 tubes in Class AB amplification and delivers 2x15W in triode mode and 2x32W in ultra-linear mode. It has 4 balanced line inputs and 4/8Ω output groups.

The rear-illuminated front panel meter is used to adjust polarization of the tubes. The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially designed for power supply. The LM-211IA delivers dynamic, rich and natural sound.

Highlights
– Push-pull
– Class AB amplifier
– Point-to-point wiring
– High quality components

TUBES
Input stage: 2x 12AX7 et 2x 12AU7
Power stage: 4x EL34

Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 4 line inputs
Load impedance: 4/8Ω
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.

Metal and removable tube guard cage
Infrared Remote control

Specifications
Class AB amplifier
2x15W RMS Triode 2x32W RMS Ultra-linear
Tubes: 2x 12AX7, 2x 12AU7, 4x EL34
THD: 1% (1kHz)
Signal/Noise ratio: 88dB (Weighted A)
Frequency response: 10 à 50.000 Hz (-1.5 dB)
Sensitivity: 200 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8Ω

Dimensions: W 376 x H 192 x D 345 mm
Weight: 19.6 Kg

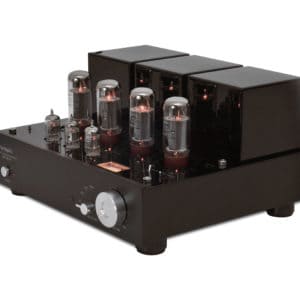

Integrated Tube Amplifier
Push Pull EL34 – CLASS AB – 2X40W

Forty watts per channel, Class AB Integrated Stereo Amplifier with EL34 output power tubes, 12AX7 and 12AU7 input tubes.

Standard with EL34 output tubes. Want to enjoy some other types of power tubes? That is why we have tube selector here.

Different from other inputs Pre-In offers you a possibility to connect to some other pre-amplifier so that you can the LM-34IA as a power amplifier.

Specially designed EI transformers for power supply and two EI output transformers with wide bandwidth are applied. Hand made construction with the finest point-to-point wiring and special audiophiles components has been carefully selected by our designers.

User bias control has been used for bias adjustment and one meter has been added to the top plate to allow you to monitor bias with ease.

Highlights
– Class AB amplifier
– Point-to-point wiring
– High quality components

TUBES
Input stage: 1x 12AX7 – 2x 12AU7
Power stage: 4x EL34

Bias control is accessible on top of the amplifier panel with true ampere meter.
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.

Metal and removable tube guard cage
Infrared Remote control

Specifications
Class AB amplifier – 2x40W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 88dB (Weighted A)
Frequency response (-1.5dB): 10 – 50.000 Hz
Sensitivity: 300 mV
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8Ω

Connectors
3x Line inputs RCA (pair)
1x Pre-in input
2x Screw terminals compatible with banana plugs

Dimensions: W 377 x H 345 x D 190 mm
Weight: 20 Kg

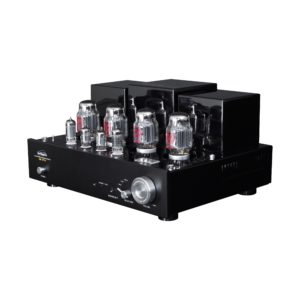

Integrated Tube Amplifier
Push Pull KT88 – 2X42W

Forty-two watts per channel, Class AB Integrated Stereo Amplifier with KT88 (JJ Electronic) output power tubes, 6CL8A (Mullard) and 12BH7 (Electro Harmonix) input tubes.

LM-88IA Amplifier can operate in two different ways Auto-biased or Fixed bias. You can select the one you prefer. Power output for Auto-bias mode is 45 watts while for fixed bias it is 30 watts per channel.

Specially designed Toroid transformers made of Z11 Core fort power supply and two Japanese Audio grade EI types of output transformers with wide bandwidth are applied. All transformers and chokes are encapsulated and installed separately on the amplifier to avoid and lower the disturbance between each other.

Highlights
– Point-to-point wiring
– Triode/ultra-linear modes
– High quality components

TUBES
Input stage: 2x 6CL8A (Mullard) et 2x 12BH7 (Electro Harmonix)
Power stage: 4x KT88 (JJ)

Specifications
Class A amplifier
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency response: 10 à 50.000 Hz (-1.5 db)
Sensitivity: 180 mV (fixe), 250 mV (auto), 1000 mV (pré-in)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω

Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Analog inputs: 3 RCA line inputs (pair)
SoftStart and time-delay circuit. (30 seconds)

Connectors
3x Line input RCA (pair)
1x Pre-In input
2x Screw terminals compatible with banana plugs

Dimensions : W 430 x H 220 x D 365 mm
Weight: 19,6 Kg
