Showing all 9 results
Classic Audio Loudspeakers Hartsfield Hartsfield Full Field Coil Drivers! The Only Hartsfield on the planet using the finest Field Coil Drivers! The magnificent performance of this front-loading corner horn is created by a 15″ low-frequency driver coupled to a long exponential horn. Above 800 cps, a 2″ high-frequency driver coupled through a unique…
Classic Audio Loudspeakers T-1.5 Reference The Only Speaker Using a Field Coil Beryllium Horn Driver on the Planet!!! Classic Audio Loudspeakers T-1.5 Reference The T-1 system was designed to obtain the finest possible sound without compromise. This system utilizes a field coil to energize its components; it is the “perfect” magnet. All permanent magnets…
Classic Audio Loudspeakers T-3.4 Field Coils The Only Field Coil Speakers on the Planet using Beryllium Horn The Classic audio Loudspeakers T-3.4 project follows our T-1 loudspeaker without compromising the built quality. It’s designed to obtain the finest possible sound from this relatively small enclosure. Contains the same high-quality components that have made…
Classic Audio Loudspeakers T-5.1 Very Musical Speaker, Very efficient and easy to drive wit low watts Classic Audio Loudspeakers T-5.1 The T-5 with 3-way loudspeaker systems are built with the finest components that consist of Alnico and Cobalt magnets, Carbon filter cones and Beryllium diaphrams with 8 and 16-ohm assemblies, resulting in…
Line Magnetic’s LM-222 Iconic speaker is a high-efficiency horn speaker. This efficiency of 102dB allows it to be driven by almost any amplifier, specifically suiting lower powered tube amplifiers to produce a natural, warm sound.
Following the concept of the famous Jensen H-222 speaker, Line Magnetic has designed the LM-222 with a 12-inch coaxial driver. This driver is a two way horn coaxial speaker with a high sensitivity. High frequency response is very good and detail obtained from the speaker is extraordinary.
Specifications
Frequency response: 37Hz~20KHz
Input sensitivity: 102dB
Power: 30W
Impedance: 8Ω
Dimensions : W 450 x H 750 x D 645 mm
Weight: 28.5kg

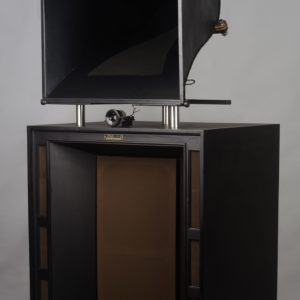

Line Magnetic’s flagship horn speaker, the LM-3 follows the design concept of the classic Western Electric Horn system.
Line Magnetic Audio is a brand of High end products founded in 2005. Now it has become well known with its series reproduction of music and regarded as a forerunner in presenting innovative products with cutting edge technology and lasting intrinsic value. Tube electronics, CD players, Classic horns, Classis field coil speakers, DACs, a lot of different series of products we are working on not only Classis electronics but also new technology on dacs and CD players. The LM-3 are exceptional speakers. The pavillon and its medium driver are replicas of the famous Western Electric 22A and the Western Electric 555W. A reproduction at the antipodes of the hi-fi with an extremely natural sound of great magnitude. The bandwith extends from 150Hz to 13kHz. In the bass, an 18-inch speaker, the TA-7376 founded in a low-reflex load. Finally the treble is entrusted to the LM-302, replica of inspiration Jensen.
The result is amazing : An input sensitivity of 105 dB for an impedance of 8 Ohms.
The LM-3 Alnico version combines the following drivers:
Tweeter: LM-302
Mid-Range: 22A Horn with 555 (Alnico Version)
Woofer: BA-18 (Alnico Version)
Crossover: TA-7376
Specifications:
Frequency response: 38Hz~20KHz
Input sensitivity: 105dB
Power: 100W
Impedance: 16Ω
The PR-22 Three Way Field Coil Power Supply is an adjustable tube rectifier low voltage field coil power supply, specifically designed for low voltage, high current application of field coil drivers. It uses a low voltage tube as the tube rectifier for the power supply.
The main circuit concept of the PR22 follows the Western Electric WE4144 design. Output voltage is from DC 7V to 24V. It can also be used as a power supply for WE, RCA etc drivers.In order to monitor the current during adjustment there is a meter installed on the front so that you can monitor during adjustment.
PR-22 Specifications:
Input Voltage Range: 220V～240V/AC 50Hz～60Hz, 100V～120V/AC 50Hz～60Hz
Output Voltage Range Three Steps:
LOW: DC 10-24V / 0.5~2A
MID: DC 3-10V / 0.5~2A
HIGH: DC 3-10V / 0.5~2A.
Weight: 39Kg
Tubes: 4 x EL-6C
Dimensions
LM-3 Dimension: 900 x 2080 x 690 mm
PR-22 Dimension: 485 x 320 x 450 mm
Line Magnetic’s flagship horn speaker, the LM-3 follows the design concept of the classic Western Electric Horn system.
Line Magnetic Audio is a brand of High end products founded in 2005. Now it has become well known with its series reproduction of music and regarded as a forerunner in presenting innovative products with cutting edge technology and lasting intrinsic value. Tube electronics, CD players, Classic horns, Classis field coil speakers, DACs, a lot of different series of products we are working on not only Classis electronics but also new technology on dacs and CD players. The LM-3 are exceptional speakers. The pavillon and its medium driver are replicas of the famous Western Electric 22A and the Western Electric 555W. A reproduction at the antipodes of the hi-fi with an extremely natural sound of great magnitude. The bandwith extends from 150Hz to 13kHz. In the bass, an 18-inch speaker, the TA-7376 founded in a low-reflex load. Finally the treble is entrusted to the LM-302, replica of inspiration Jensen.
The result is amazing : An input sensitivity of 105 dB for an impedance of 8 Ohms.
The LM-3 Field Coil version combines the following drivers:
Tweeter: HT-70CU (Horn version)
Mid-Range: 22A Horn and 555 (Field Coil Version)
Woofer: TA-4181 (Field coil Version)
Crossover: TA-7376
Power Supply: PR-22
Specifications:
Frequency response: 38Hz~20KHz
Input sensitivity: 105dB
Power: 100W
Impedance: 16Ω
The PR-22 Three Way Field Coil Power Supply is an adjustable tube rectifier low voltage field coil power supply, specifically designed for low voltage, high current application of field coil drivers. It uses a low voltage tube as the tube rectifier for the power supply.
The main circuit concept of the PR22 follows the Western Electric WE4144 design. Output voltage is from DC 7V to 24V. It can also be used as a power supply for WE, RCA etc drivers.In order to monitor the current during adjustment there is a meter installed on the front so that you can monitor during adjustment.
PR-22 Specifications:
Input Voltage Range: 220V～240V/AC 50Hz～60Hz, 100V～120V/AC 50Hz～60Hz
Output Voltage Range Three Steps:
LOW: DC 10-24V / 0.5~2A
MID: DC 3-10V / 0.5~2A
HIGH: DC 3-10V / 0.5~2A.
Weight: 39Kg
Tubes: 4 x EL-6C
Dimensions
LM-3 Dimension: 900 x 2080 x 690 mm
PR-22 Dimension: 485 x 320 x 450 mm

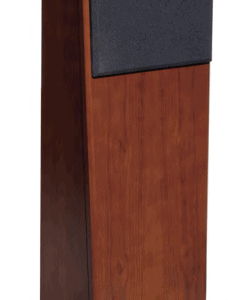

Line Magnetic’s LM-69 speaker is a 6 x 9 inch full range speaker. The LM-69 takes on both advantages of a 6 inch driver for good mid-high frequency range and a 9 inch driver for low frequency capability.
Also, the LM-69 oval driver reduces resonance oscillation and allows more sound diffusion to create a wide sound stage. This is design is intended to be a very good speaker for listening to vocals.
Specifications
Frequency response: 40Hz~22KHz
Input sensitivity: 95dB
Power: 20W
Impedance: 8Ω
Dimensions (cm): W 270mm x H 1060mm+50mm (feet pin) x D 250mm x2pcs
Net weight: 20kg x 2 = 40kg
Gross weight: 50kg

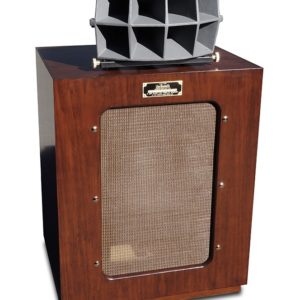

Line Magnetic’s LM-812 Iconic speaker is a high-efficiency horn speaker. This efficiency of 102dB allows it to be driven by almost any amplifier, specifically suiting lower powered tube amplifiers to produce a natural, warm sound. The bass speaker with a diameter of 46cm makes it possible to reporduce the low frequencies of an exceptional transparency.
Inspired by the timeless Altec Iconic 812 speaker system, the Line Magnetic LM-812 Iconic combines an Altec 808-8 driver/horn with Line Magnetic’s own 18 inch Woofer.
Specifications
Frequency response: 37Hz~20KHz
Input sensitivity: 102dB
Power: 40W
Impedance: 8Ω
Dimensions: W 720 x H 1180 x D 590 mm
