QUESTED HIGH POWERED CEILING OVER HEAD SPEAKERS

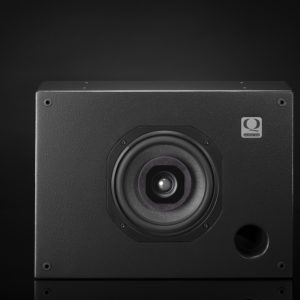

When clarity, power and fatigue free sound is required. Quested CX8 passive designed speakers will deliver above your expectations. Small form factor designed speakers that can easily fit into the tightest spaces but delivery a large open sound, Suitable installs: High End Residential Cinemas & Media Rooms, Private Venues, Clubs, Bars, Restaurants, Hotels, Gyms, Offices etc.
Applications
Screen speaker for medium-large size rooms
Recommended Listening Distance: Minimum 3m, Maximum 12m
Features
Air Motion Transducer high-frequency drive unit
5″ mid-range drive unit
Twin 8″ low-frequency drivers
Low distortion design without horns or compression drivers
Power Requirements

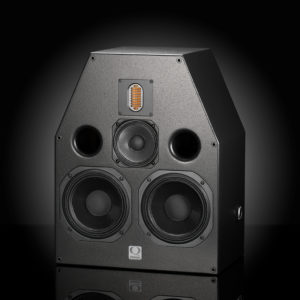

Each single Z16 cabinet is powered by a Quested active amplifier fitted with 24dB/Oct filter cards
Specifications
Size (WxHxD) 485mm x 612mm x 324(d)mm
Weight 42kgs
Drivers LF 2 x 200mm (8″) cone
MF 1 x 125mm (5″) cone
HF 1 x Air Motion Transducer
Maximum SPL 112.4dB
Frequency Response 44Hz – 18.5kHz +/-3dB (-6 @35Hz)
Input Connectors Triple-pair gold plated binding posts as standard, accepting 4mm banana plugs or bare wire. Rear and side connector panels. Optional Neutrik NL4 connectors
Power requirements Quested active amplifier set-up to drive a single 3-way cabinet
Applications
Screen speaker for small-medium size rooms
Height channels for larger systems
Surround use in Z16 systems
Recommended Listening Distance: Minimum 2m, Maximum 8m
Features
Air Motion Transducer high-frequency drive unit
8″ low-frequency driver
Low distortion design without horns or compression drivers
Power Requirements
Can be powered by 2 channels of a Quested AP750-2 for greater dynamic response (Screen use). Amplifiers would be fitter with 24dB/Oct filter cards.
Specifications
Size (WxHxD) 312mm x 430mm x 195(d)mm
Weight 11.5kgs
Drivers Customs 8″ driver and Air Motion Transducer
Maximum SPL 108.3dB
Nominal Impedance 8ohms each drive unit
Frequency Response 40Hz – 20kHz +0.5/-6dB, 56Hz – 19.5kHz +0.5/-3dB
Input Connectors 2 x Twin binding posts for banana plugs or bare wire
Mounting Type 50. Quested WB50 Wall and CB50 Ceiling bracket
Power requirements Quested AP750-2 amplifiers
Options Optional cloth grille, wall and ceiling brackets
