Description

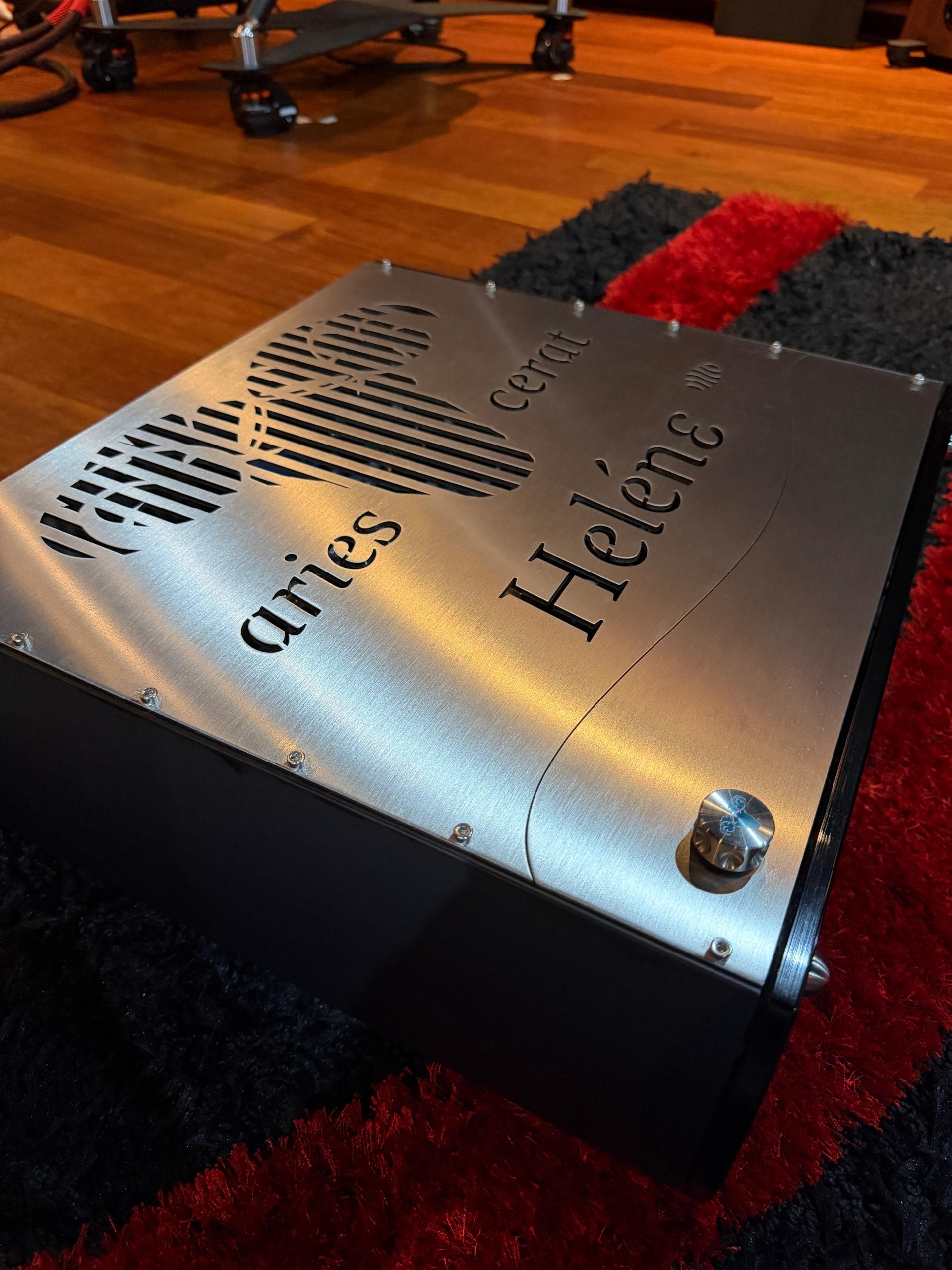

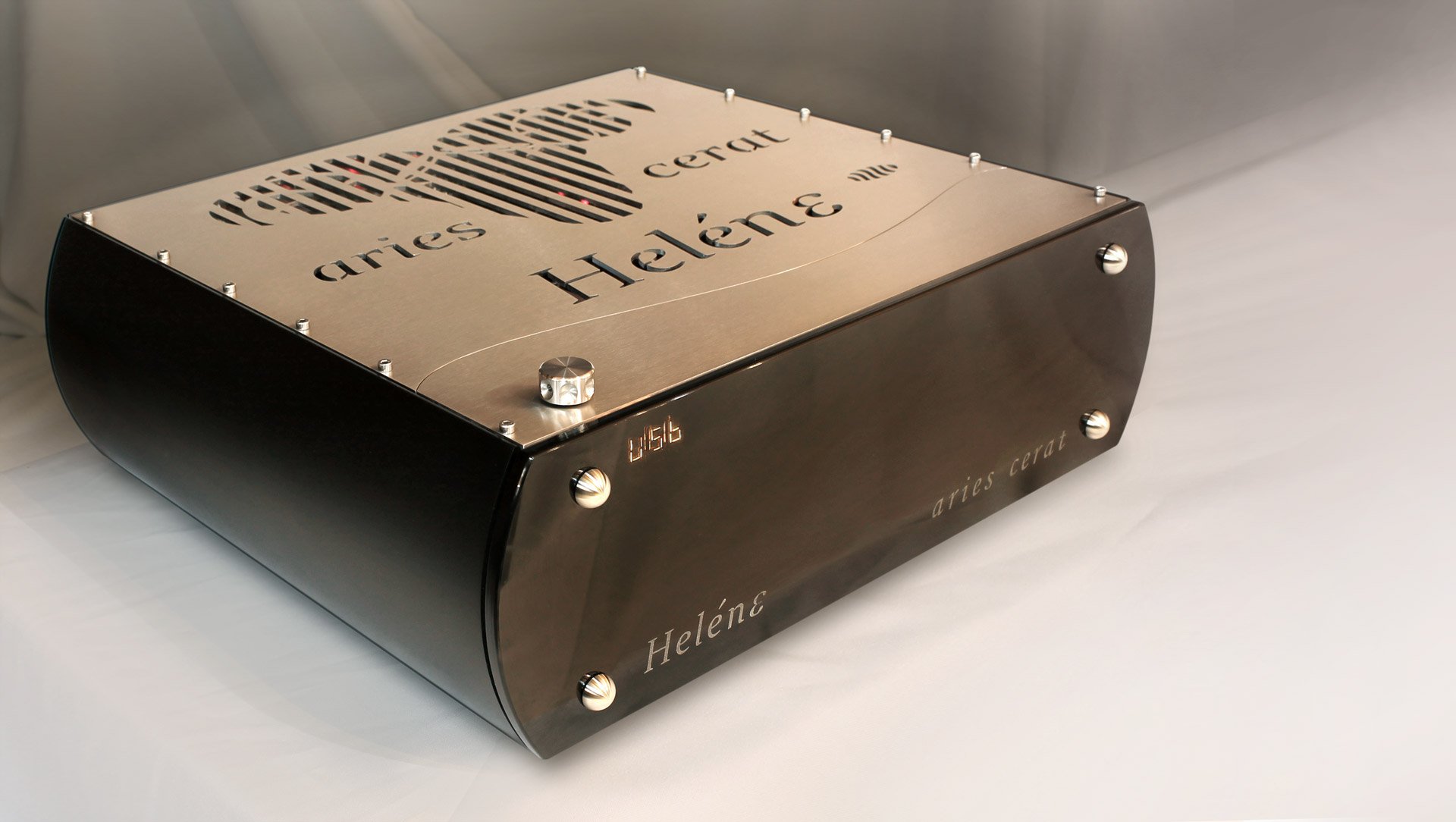

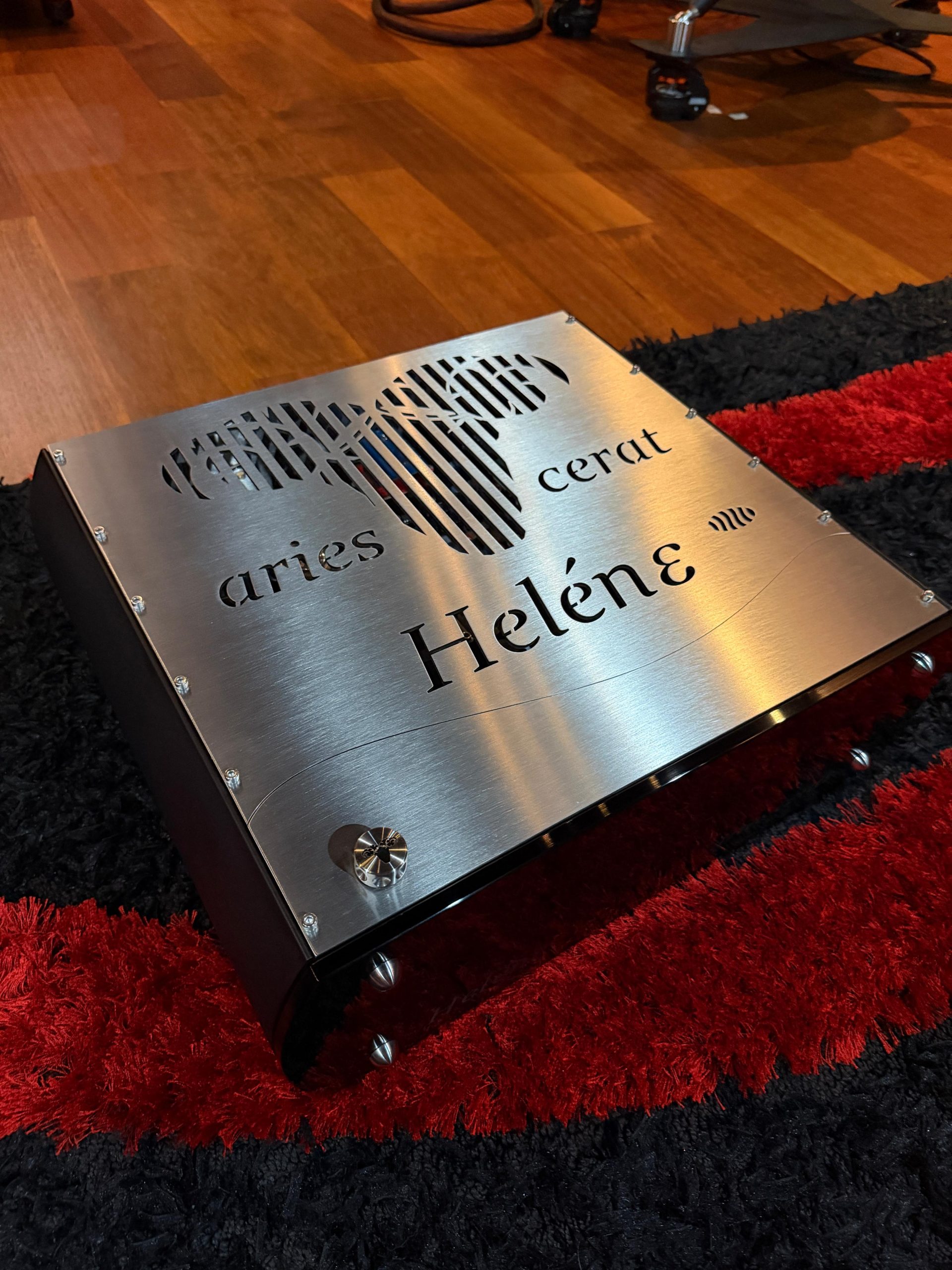

Aries Cerat Helene DAC

The Helene is the most compact digital-to-analog converter in the Aries Cerat lineup. “Compact,” however, is relative — the unit still weighs an impressive 40 kg, reflecting the brand’s uncompromising engineering philosophy: performance above all else.

Borrowing key technologies from the flagship Kassandra Series, the Helene brings reference-level digital conversion to a more accessible platform. With a pure ladder DAC architecture, advanced clocking technology, and a tube-driven analog stage, the Heléne delivers extraordinary musical realism and an exceptional performance-to-price ratio in the world of high-end digital audio.

Design Philosophy

When designing the Heléne, Aries Cerat stayed true to its core principle: maximum sonic performance first, everything else second. Many of the design concepts used in this converter are derived directly from the company’s flagship models, ensuring that even this more accessible unit embodies the same uncompromising engineering standards.

Ladder DAC Architecture

The Helene is a bit-perfect ladder DAC, meaning it performs no data processing, upsampling, or oversampling. All incoming digital signals are converted at their native sample rate and bit depth, preserving the integrity of the original recording.

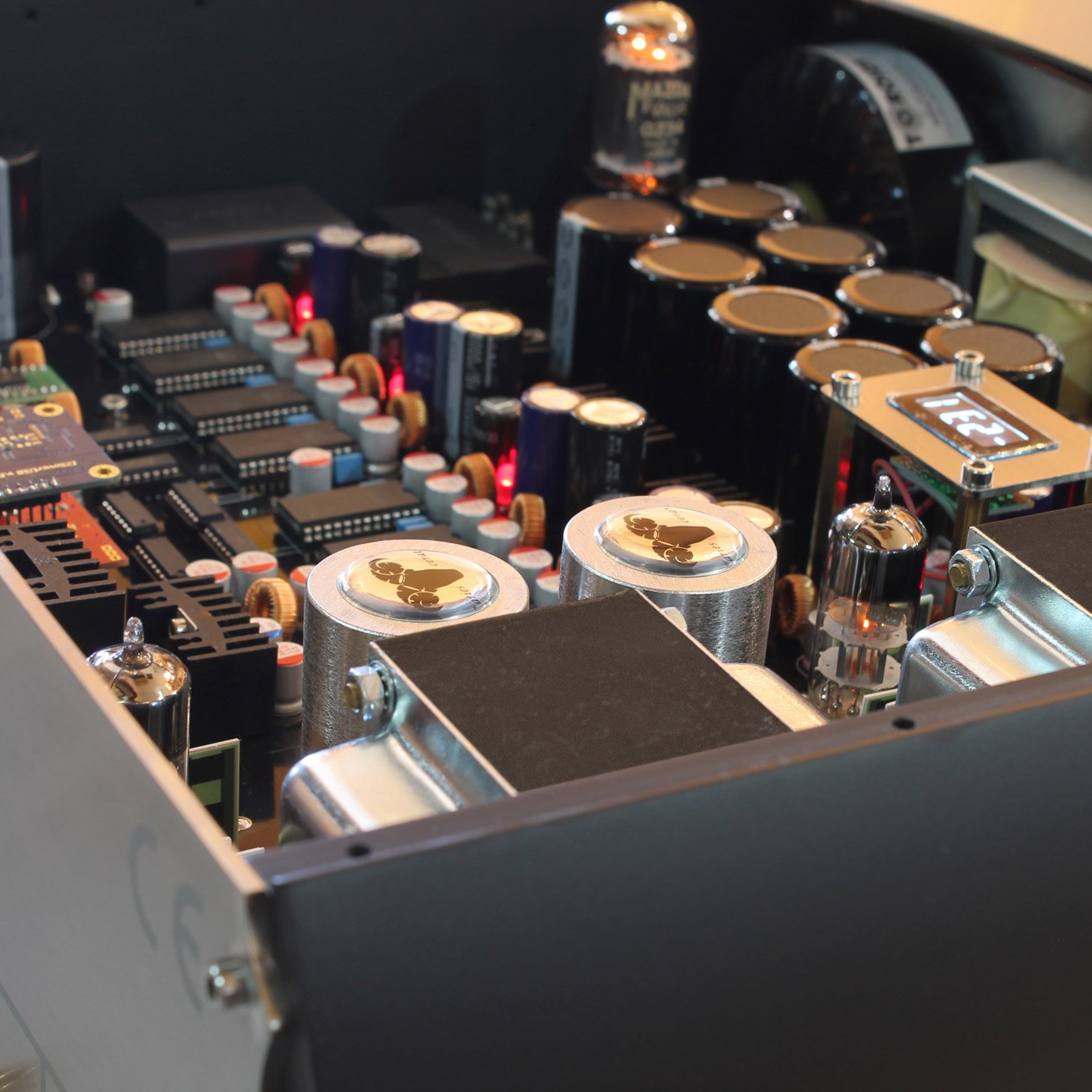

The converter stage is built around a matrix of eight R2R converters per channel, operating in parallel. Two independent converter banks are used for each channel, based on the renowned Analog Devices AD1865N-K chips running in current mode.

These converters are driven by Aries Cerat’s custom logic system, which manages synchronization, data handling, and work buses with exceptional precision.

Super Clock Technology

The Helene incorporates Aries Cerat’s proprietary Super Clock system, a technology developed for their flagship converters.

This internal clock dramatically reduces jitter and eliminates the need for external word clocks. All digital inputs benefit from advanced reclocking:

• The USB input is double reclocked

• S/PDIF and AES inputs are reclocked internally

• The digital reclocker can be bypassed instantly if desired

The result is extremely precise timing and femtosecond-level jitter performance.

Transformer I/V Conversion

Since the converter banks operate in current output mode, the quality of the I/V (current-to-voltage) stage is critical.

The Heléne uses a custom transformer-based I/V conversion stage built with an ultra-high-MU core. This transformer directly modulates the bias circuits of the analog tube stage, allowing for a highly natural and dynamic presentation.

Tube Gain Stage

The analog output stage is borrowed from Aries Cerat’s larger models and functions as a small single-ended triode (SET) amplifier.

It is built around the highly regarded E280F super tube, coupled with a custom high-quality output transformer. This design contributes to the distinctive Aries Cerat sound signature: rich tonality, expansive soundstage, and exceptional musical realism.

Power Supply

Power supply design is fundamental to the Heléne’s performance.

The analog stage uses a tube-rectified power supply based on the GZ34 rectifier, combined with triple choke filtering and film capacitors to provide extremely low-noise voltage rails for the SET amplifier.

Additional design elements include oversized capacitor banks, extensive RF filtering, and ultra-low-noise bias circuits for the tube stage. Both the digital and analog sections benefit from carefully engineered, independent power supply systems to ensure maximum stability and sonic purity.

Technical Specifications

Digital Section

• Converter Architecture
  8 R2R converters per channel using Analog Devices AD1865N-K chips
  Two independent converter banks per channel
  Current output configuration
• Voltage Regulation
  Four discrete ultra-low-noise regulators for the converter banks
• Power Supply
  Oversized power supply design with power input filtering
• Current-to-Voltage Conversion
  Custom wideband transformer I/V conversion
  Balanced current to single-ended voltage conversion
• Clock System
  Internal Aries Cerat Super Clock with triple regulated power supply
  Clock bypass selectable on the fly

Input & Output Section

Power Supply
Large toroidal transformer
Oversized capacitor banks with input filtering

Analog Gain Stage
Transformer-loaded tube output stage
E280F super tube
5:1 step-down output transformer
Double choke filtered supply

Outputs

2 × RCA outputs
2 × Balanced (XLR) outputs
True balanced output architecture
Floating RCA output switchable (ground loop resolver)

Output Level
30 Vpp output at 0 dB
10 Vrms

Output Impedance
50 ohms (balanced and single-ended)

Digital Inputs

USB Input
Supports up to 24-bit / 384 kHz

Jitter Attenuation
Down to femtosecond levels

Physical Specifications

Dimensions
500 mm (W) × 430 mm (D) × 165 mm (H)

Weight
40 kg – Unpacked
65 kg – Packed

Source : https://aries-cerat.com/helene-product-page/
