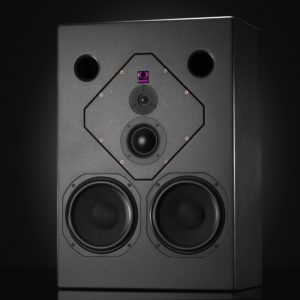

Quested HQ210 Speakers

The largest of the three way passive monitors is the HQ210. With two 10” LF drivers along with a soft dome mid and a soft dome high mounted in a rotatable baffle, the HQ210 can be used vertically or horizontally. As with all the passive Quested monitors a hand built crossover network is employed that offers a very efficient and transparent performance. Designed to be a midfield main monitor for use as either a soffit or free standing system. The HQ210 is the most powerful passive monitor in the Quested range. Recommended partner amplifier is the Quested AP1550-2.

TECHNICAL SPECIFICATION
Dimensions: 590(w) x 850(h) x 355(d) mm

Weight: 60 kg / 132 lb

Drivers: Bass cone – 2 x 250 mm (10 ”)

Mid Frequency soft dome: 1 x 75 mm (3”)

High Frequency soft dome: 1 x 28 mm (1 ⅛”)

Maximum SPL: 113.5 dB continuous pink noise @ 1m Leq 1 minute. 119.5 dB continuous pink noise per pair @ 1m Leq 1 minute

Frequency Response: 40 Hz-20 kHz ± 2 dB / 35 Hz-22 kHz -6 dB

Connector: Triple pair binding posts

Impedance: 8 ohms

Sensitivity: 92dB @ 1 watt 1

Power Requirements: Amplifier rated at 8 ohms delivering between 300 and 900W RMS per channel

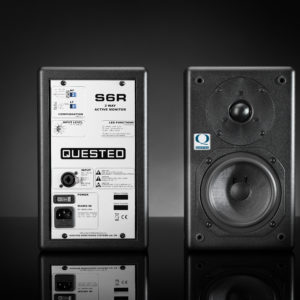

Quested S6R Speakers

The S6R is the most compact unit in the ranger offering a 5” low frequency driver in an infinite baffle enclosure. The built in amplification provides a total of 110W RMS to the drivers. Power is split with 65W RMS to the 5” LF and 45W RMS to the silk dome tweeter. Attenuation to the input sensitivity along with low and high frequency is available on the rear panel. The frequency response is 80Hz – 20kHz with a +- 2db tolerance and a -6dB cut off at 67Hz. Ideally suited to those with limited space and when coupled to the SB10R offers a very powerful yet compact full range monitoring solution.

TECHNICAL SPECIFICATION
Dimensions: 170(w) x 285(h) x 240(d) mm

Weight: 7.5 kg / 15.5 lb

Drivers: Bass cone – 1 x 130 mm (5 ”)

High Frequency: Soft dome – 1 x 28 mm (1 ⅛”)

Maximum SPL: 100 dB continuous pink noise @ 1m. Leq, 1 minuet, single unit. 106 dB continuous pink noise @ 1m. Leq, 1 minuet per pair

Frequency Response: 80 Hz-20 kHz ± 2 dB / 67 Hz-22kHz -6 dB

Connector: XLR and ¼ inch Jack combo socket

Impedance: 10k electronically balanced with RF filters

Wiring:

Pin 1 ground Sleeve
Pin 2 hot Tip
Pin 3 cold Ring

Sensitivity: -12 dBu to +6 dBu for 96 dB SPL @ 1 m set by 10 position rotary switch on rear

Subsonic: -3dB @ 45 Hz, 24dB/oct

Ultrasonic: -3dB @ 75kHz, 4dB/oct

Crossover: 1k19

LF EQ: -2/- 4 @ 82 Hz

HF EQ: +/- 2dB @ 10 kHz

POWER AMPLIFIER
LF output power: 65W RMS continuous (note 1)

HF output power: 45W RMS continuous (note 1)

THD: 0.03% at levels up to 1 dB below clip, 20 Hz-20 kHz. Typ 0.005% @ 1kHz.

Hum & Noise: > -100 dB referred to clip

Note: The continuous rating is for a period not exceeding 5 minutes with unrestricted airflow (100 mm clearance) around the amplifier heatsinks and an ambient temperature not exceeding 30 Degrees C.

INDICATORS
Power on: Front mounted green LED indicates power applied.

Clip: Red LED 2 dB before amplifier clip.

POWER REQUIREMENTS
Voltage: Set by internal plugs: nominal 115V or 230V @ 50-60 Hz AC 230V setting: min 160V; restricted output power: max 255V 115V setting: min 80V; restricted output power: max 127V

CONSUMPTION
Quiescent: 12W

Typical use: 45W (average music)

Max: 90W (average music)

Note: 0 dBu = 775 mV into open circuit

This product is built to conform to the requirements for CE marking.

Quested SB10R Subwoofer

THE PERFECT PARTNER FOR YOUR S-SERIES MONITORS
The SB10R is the reference subwoofer that partners with the S-Series. Delivering a powerful yet clean bass response all the way down the 25Hz, the SB10R completes the S-Series. A 10” driver is perfectly matched to the cabinet volume and paired with its own dedicated remote power amplifier. The SBC250 amplified controller (250W) has all the features to allow perfect integration of the sub with any system. It has a variable crossover from 40Hz to 135Hz, gain control from -14db to +6db, up to 160 degrees of phase control, along with a polarity ± switch, output level metering and a bypass function, all in a 1U rack unit. Remote power allows for very easy setup, with all the controls you need at your fingertips.

TECHNICAL SPECIFICATION
Dimensions: Cabinet 600(w) x 332 (h) x 300(d) mm SBC250 Controller – 1U case 270mm deep

Weight: Cabinet – 19.8 kg / 43.4 lb
SBC250 Controller – 5.5 kg / 12 lb

Drivers: Bass cone 1 x 250mm (10”)

Frequency Response: User Adjustable. 25 Hz-200 Hz ± 2 dB / 17 Hz-200 Hz -6 dB

Maximum SPL: 116 dB continuous pink noise @ 1m Leq 1 minute half space

Connector: 2 off XLR and ¼ inch jack combo socket

Impedance: 10k W electronically balanced with RF filters

Wiring:

Pin 1 ground Sleeve
Pin 2 hot Tip
Pin 3 cold Ring
OUTPUTS:

Left and Right Monitor 2 off XLR type male left & right outputs
Impedance 100 ohm electronically balanced
Wiring Pin 1 ground, Pin 2 hot, Pin 3 cold
Sub Bass Output: 1 pair binding posts

FILTERS: Left & Right Input Summed to Sub Output

Subsonic/High Pass: -3dB @ 14Hz, 24dB/oct or -3dB @ 28Hz, 24dB/oct (set by internal jumper)

Low Pass: -3dB @ 40Hz to 135Hz, externally adjustable @ 24db/oct or full range on CH A

Left & Right Input to Left & Right Output

Ultrasonic: -1dB @ 100k

High Pass: -3dB @ 40Hz to 135Hz, externally adjustable @ 24db/oct or full range on CH A

POWER AMPLIFIER
THD:

210W rms continuous
0.03% at levels up to 1dB below clip, 20Hz – 120Hz typ
0.005% @ 20W rms 100Hz

Hum & Noise: -100 dB referred to clip

POWER REQUIREMENTS:
Set by internal plug: normal 115V or 230V setting: Min 160V (restricted output power): Max 255V 115V setting: Min 80V (restricted output power): Max 127V

CONSUMPTION
Quiescent: <30Wv

Typical use: 50W

Max: <200W

Note: 0 dBu = 775 mV into open circuit

This product is built to conform to the requirements for CE marking.

CONTROLS
Crossover Frequency 40 – 135Hz, front panel pot
Test (Band limited pink noise), front panel recessed switch (LED indicates when on)
Sub bass bypass, front panel switch (LED indicates when bypassed)
Sub Gain –14 to +6, front panel pot (Sub level indicated with LED Meter)
Sub Phase, front panel pot
Sub Polarity, front panel recessed switch (LED indication for positive and negative polarity)
Power, front panel switch
Left channel sub filter bypass, rear mounted recessed Switch
Subsonic filter 14 or 28Hz, Internal jumpers

Quested V3110 Speakers

Designed for use in near to midfield applications, the V3110 is our most powerful self powered monitor and, because of its 1000 watts of class AB and class D amplification, it is one of the most powerful in its class. The three way design of the V3110 and the utilisation of the soft dome mid and high frequency drivers along with the custom 10″ low frequency driver mean that the V3110 truly can deliver for the most demanding of material with a flat response down to 30Hz.

The successor to the VS3208, a favourite with the dance and remix fraternity the V3110 has been able to improve on the low end performance whilst maintaining that precision recognised in the VS3208. Producing a very linear response along with the capability of high SPL the V3110 is also a favourite of the scoring community. Delivering a dynamic and very natural sound stage with a response all the way down to the lower register of a church organ the V3110 is the flagship product of the powered monitors from Quested.

TECHNICAL SPECIFICATION
Size: 380 x 600 x 360mm (w x h x d)

Weight: 39kg / 86lb

Driver: Low Frequency 1 x 250mm(10″)

Mid: 1 x 75mm (3”) soft dome

High Frequency: soft dome 1 x 28mm (1 1/8″)

Frequency Response: 34Hz – 20kHz ±2dB / 30Hz – 22kHz -6 dB

Maximum SPL: 115.5 dB continuous pink noise @ 1m Leq 1 minute. 121.5 dB continuous pink noise per pair @ 1m Leq 1 minute

INPUT
Connector: XLR3 type-Female

Impedance: 10k Electronically balanced with RF filters

Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold

Sensitivity: Rear mounted 10 position rotary switch calibrated in 2dB steps

Minimum sensitivity +4dBu for 100dB SPL @ 1m

Maximum sensitivity -14dBu for 100 dB SPL @ 1m

FILTERS
Subsonic: -3dB @ 14Hz, 24dB/oct

Crossover Points: 650Hz, 2k5H, 24dB/oct.

User LF EQ: 4 position rear mounted selector to select FLAT for normal use. -9dB and -3dB for cut below 100Hz, +1dB for lift above 80Hz.

User MF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 650Hz to 2k5Hz.

User HF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 2k5Hz to 40kHz.

POWER AMPLIFIER
LF output power: > 700W rms continuous (Note 1)

Mid Output: > 150W rms continuous (Note 1)

HF output power: > 150W rms continuous (Note 1)

THD: < 0.03% at levels up to 1dB below clip, 20Hz – 20kHz. typ 0.005% @ 20W rms 1kHz.

Hum + Noise > -100dB referred to clip

Note 1: The continuous rating is for a period not exceeding 5 minutes with unrestricted airflow (100mm clearance) around the amplifier rear panel and ambient temperatures is <30 o C

INDICATION
Power on: Front mounted LED (flashing blue) indicates power applied and warm-up cycle.

Optimum Performance: Front mounted LED lights constant blue.

Overload: Front mounted LED flashes red 0.5dB below signal clip.

Thermal Protection: Front mounted LED turns red, signal is muted and amplifier switches to standby mode during thermal protection cooling cycle. Normal operation resumes when amplifier temperature drops by 20 o C.

POWER REQUIREMENTS
Voltage: Set by internal plugs: nominal 115V or 230V @ 50-60Hz AC.

230V setting: Min 160V (restricted output power): Max 263V

115V setting: Min 80V (restricted output power): Max 132V

CONSUMPTION
Quiescent 72W, typical use 110W.

Note 0dBu = 775mV into open circuit.

This product is built to conform to the requirements for CE marking.
